A dairy processing plant required safety light curtains with IP69k to withstand high pressure (to 1450 PSI) and high temperature (to 176° F / 80° C) wash downs in the food processing environment. They previously used alternative safety light curtains which were prone to failing under washdowns. Additionally, aligning those curtains was another challenge they faced. The solution for their application was light curtains with IP69K protective enclosure from Schmersal.
Schmersal’s Solution

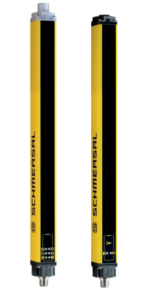

SLC440 safety light curtains SH
Protective enclosure SH – stainless steel
Protective enclosure PH – polyamide
Options are available for the SLC440 light curtains to be factory sealed within an IEC 60529 IP69 rated enclosure. This allows the curtains to be used in areas where they may be exposed to high pressure or high temperature wash downs or ECOLAB approved cleaning agents.
Features:
High protection class IP69, 2-part O-ring seal
Hygienic design – End caps, mounting and membrane made of stainless steel V4A
Break and shock-resistant protective tube made of polycarbonate
Connection with M12x1 4-pin or 8-pin, cable length 10 m
Beam blanking device for fixed and moving objects
User-friendly parameter setting, no tools required
Process reliability with daily cleaning
Integrated set-up tool
Optional integrated AS-i Safety at Work interface
Resolution 14 mm … 30 mm
Range 0.3 m … 20 m
Area protection with up to 4 emitters
Suitable for applications in PL e / SIL 3
Applications
Power-driven machines
Power presses
Folding or brake presses
Filter presses
Punching machines
Robot cells
Welding booths
Printing machines
Injection molding
Materials handling and storage technology
Palletizers
Packaging equipment
Tri-Phase Automation is a Schmersal Distributor in Wisconsin. We can answer your questions or provide you with a quote.
